Sensors are installed on HVAC equipment such as pumps to monitor equipment based on parameters including shaft vibration, current, and rotational speed.
This technology is based on systems developed by Hitachi Plant Construction, Ltd., and uses algorithms that diagnose degradation based on operating parameters by combining process computer data and equipment models, while also performing degradation monitoring using inspection and measurement data to provide equipment degradation diagnostics.
By collaborating with Hitachi Plant Construction, Ltd. and proposing optimal solutions to customers, we will enhance equipment reliability and improve maintenance efficiency.
Data measurement is performed by installing external sensors without modification of existing chillers. Measurement data are analyzed and diagnosed based on accumulated operational know-how, technologies, and expertise in chiller operation.
By applying this system, compressor vibration, acoustic signals, and other parameters are measured, and normal data are accumulated. The accumulated data is grouped to create training datasets. These datasets are compared with diagnostic data to detect early signs of anomalies.

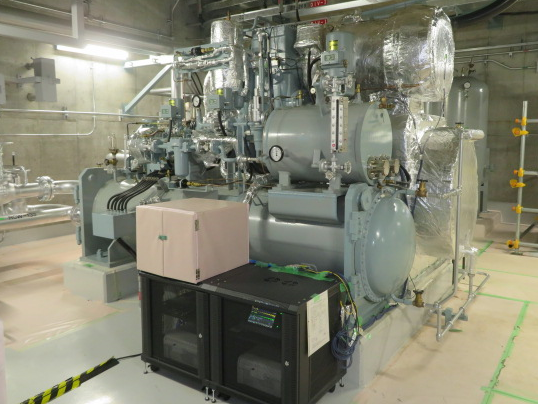

Predictive Diagnosis System (Application to Actual Equipment: Data Measurement)

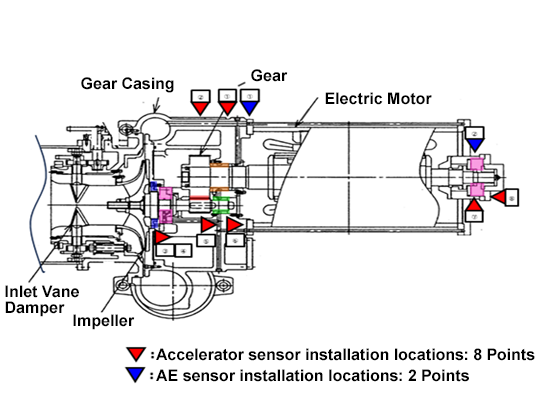

Compressor Sensor Installation Positions

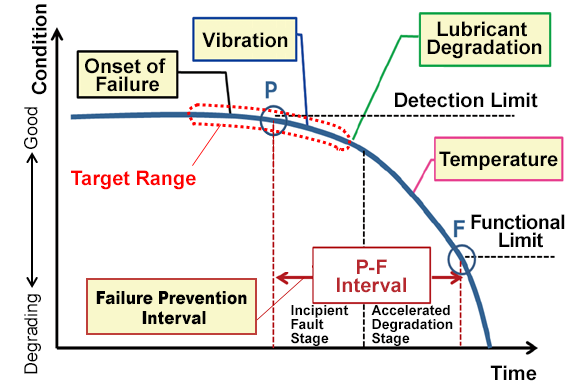

Image of Anomalous Trend Detection
